Do not expect too much from this project, because the Paint class is designed more for use in Paint scripts than for freehand drawing on a suitable drawing area such as a DrawingArea.

The basic idea for a sufficiently continuous freehand line comes from Tobias Boege. It consists of remembering the point from the last MouseMove event and, instead of setting individual points, connecting the last point with the point of the current event using a straight line segment (distance) with LineTo().

These are the results, the dynamics of which you will only experience when you start the programme yourself:

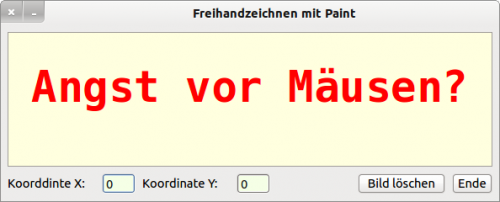

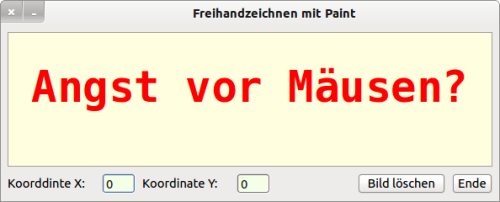

Figure 23.3.4.2.1: Start screen …

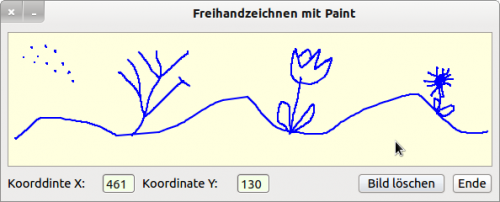

Figure 23.3.4.2.2: Spring with tulip by H.L. from O. 2015

With this source text, you too can become a short and small art painter:

' Gambas class file

Private bStart As Boolean
Private i As Integer
Private pLast As PointF

Public Sub Form_Open()
  FMain.Center()
  FMain.Resizable = False

  txtMouseX.Mouse = Mouse.Blank   '-- TextBox without mouse pointer
  txtMouseY.Mouse = Mouse.Blank
  btnClose.Mouse = Mouse.Pointing '-- Mouse constant (hand)
  btnClear.Mouse = Mouse.Custom
  btnClear.Cursor = New Cursor(Picture["Mauszeiger/erase.png"]) '-- Customised mouse image

' The default mouse tip is the top left corner of the mouse image
' With x=0 and y=15, the mouse tip lies on the pencil lead

  DrawingArea1.Mouse = Mouse.Custom
  DrawingArea1.Cursor = New Cursor(Picture["icon:/16/pen"], 0, 15)

  Paint.Begin(DrawingArea1)
    Paint.Brush = Paint.Color(Color.Red)
    Paint.Font = Font["Monospace, 38, bold"]
  ' Text centred on the drawing page in the specified rectangle
    Paint.DrawText(("Angst vor Mäusen?"), 0, 35, DrawingArea1.W, DrawingArea1.H, Align.Top)
  Paint.End()
  Timer1.Start()
End

Public Sub DrawingArea1_MouseMove()
  If bStart = True Then
     bStart = False
     DrawingArea1.Clear
  Endif

  Timer2.Start()
  txtMouseX.Text = Mouse.X
  txtMouseY.Text = Mouse.Y
  If Mouse.Left = True Then
     Paint.Begin(DrawingArea1)
     If Mouse.X>5 And Mouse.X<DrawingArea1.Width - 5 And Mouse.Y>5 And Mouse.Y<DrawingArea1.Height - 5 Then
        SetPoint(Mouse.X, Mouse.Y, Color.Blue)
     Else
        pLast = Null
     Endif
     Paint.End
  Endif

End

Public Sub DrawingArea1_MouseDown()
  DrawingArea1_MouseMove()
End

Public Sub DrawingArea1_MouseUp()
  Timer2.Stop()
  pLast = Null
End

Public Sub SetPoint(X As Integer, Y As Integer, cColor As Integer)
  If Not pLast Then
     Paint.FillRect(X, Y, 2, 2, cColor)
  Else
     Paint.MoveTo(pLast.X, pLast.Y)
     Paint.LineTo(X, Y)
     Paint.LineWidth = 2
     Paint.Background = cColor
     Paint.Stroke()
  Endif
  pLast = New PointF(X, Y)
End

Public Sub btnClear_Click()
  DrawingArea1.Clear
  txtMouseX.Text = "0"
  txtMouseY.Text = "0"
End

Public Sub Timer1_Timer()
' The fastest mouse in Gambas Land... Speedy Gamzales
  Paint.Begin(DrawingArea1)
    Paint.Translate(10, 155)
    Paint.Scale(1, -1)
    Paint.AntiAlias = False
      Paint.Brush = Paint.Color(Color.DarkGray)
      Paint.Arc(10 + i, 30, 4)
      Paint.Fill()
      Paint.Brush = Paint.Color(&HFFFFDF)
      Paint.Arc(10 + (i - 8), 30, 4)
      Paint.Fill()
      i = i + 8
      DrawingArea1.Refresh()
    Paint.AntiAlias = True
  Paint.End()
  If i > DrawingArea1.Width Then
     bStart = True
     Timer1.Stop()
  Endif
End

Public Sub btnClose_Click()
  FMain.Close()
End
