GAMBAS-BOOK 3.19.5

The gb.web.feed component - WebFeed for short - complies with the RSS 2.0 specification and maps the RSS specification 1:1. This means that

• only RSS feeds that comply with the specification are parsed without errors and
• valid RSS feeds are only generated if the specification is followed!

The first project creates an empty RSS feed:

Public hRSS As Rss

Private Function WriteFeed() As String

    Dim hXML As String
    Dim hRSSItem As RssItem

'-- Es wird ein neues RSS-Objekt erzeugt
    hRSS = New Rss

'-- Der Feed wird gerendert → XML-Format
    hXML = hRSS.ToString()

    Return hXML

End

This is the content of hXML - as you can see, it is a valid RSS document:

<?xml version="1.0" encoding="UTF-8"?><rss version="2.0"> <channel> <title /> <link /> <description /> </channel></rss>

The second project inserts two entries into the above template in the channel. Then the XML document is saved (temporarily) in the file rss.xml. Afterwards, the file can be loaded, the content read in and parsed, and selected data output:

' Gambas class file

Public hRSS As Rss

Public Sub Form_Open()
    FMain.Caption = "Schreiben und Lesen eines RSS-Feeds  →  Datei ~/rss.xml"
End

Public Sub btnWriteFeed_Click()

    WriteFeed()
    txaOutput.Insert(File.Load(Temp("rss.xml")))

End

Public Sub btnReadFeed_Click() '

'-- Der RSS-Feed wird aus einer XML-Datei geladen - wenn sie existiert
    If Not Exist(Temp("rss.xml")) Then Return

    ReadFeed(File.Load(Temp("rss.xml")))

    txaOutput.SetFocus()
    txaOutput.Pos = txaOutput.Length

End

Public Sub btnClear_Click()
    txaOutput.Clear()
End

Private Function WriteFeed() As String

    Dim hXML As String
    Dim hRSSItem As RssItem

'-- Es wird ein neues RSS-Objekt erzeugt
    hRSS = New Rss

'-- Ausgewählte Channel-Eigenschaften werden festgelegt
    hRSS.Title = "CHANNEL 1 - TITEL"
    hRSS.Link = "CHANNEL 1 - LINK: www.channel.net"
    hRSS.Description = "CHANNEL 1 - DESCRIPTION"
    hRSS.Pub = New RssDate(DateAdd(Now, gb.Hour, 0))

'-- Es wird ein neuer Eintrag 1 erzeugt
    hRSSItem = New RssItem
'-- Ausgewählte Item-Eigenschaften werden festgelegt
    hRSSItem.Title = "ITEM 1 - TITEL"
    hRSSItem.Link = "ITEM 1 - LINK 1: www.example.com/item_1"
    hRSSItem.Description = "ITEM 1 - DESCRIPTION"
    hRSSItem.Pub = New RssDate
'-- Der Eintrag 1 wird in den Feed eingefügt
    hRSS.Add(hRSSItem)

'-- Es wird ein neuer Eintrag 2 erzeugt
    hRSSItem = New RssItem
'-- Ausgewählte Item-Eigenschaften werden festgelegt
    hRSSItem.Title = "ITEM 2 - TITEL"
    hRSSItem.Link = "ITEM 2 - LINK 2: www.example.com/item_2"
    hRSSItem.Description = "ITEM 2 - DESCRIPTION"
    hRSSItem.Pub = New RssDate
'-- Der Eintrag 2 wird in den Feed eingefügt
    hRSS.Add(hRSSItem)

'-- Der Feed wird gerendert -> XML-Format
    hXML = hRSS.ToString()

'-- Der RSS-Feed wird in einer (temporären) XML-Datei gespeichert
    File.Save(Temp("rss.xml"), hXML)

    Return hXML

End

Private Function ReadFeed(argData As String)

    Dim hXML As String
    Dim iRSSCount As Integer
    Dim hRSSItem As RssItem

'-- Der RSS-Feed wird aus einer XML-Datei geladen - wenn sie existiert
    If Not Exist(Temp("rss.xml")) Then Return

    hXML = File.Load(Temp("rss.xml"))

'-- Es wird ein neues RSS-Objekt erzeugt
    hRSS = New Rss
    hRSS.FromString(hXML)

'-- Ausgewählte Channel-Eigenschaften werden ausgelesen *und* angezeigt
    If hRSS.Title Then txaOutput.Insert(hRSS.Title & gb.NewLine)
    If hRSS.Link Then txaOutput.Insert(hRSS.Link & gb.NewLine)
    If hRSS.Description Then txaOutput.Insert(hRSS.Description & gb.NewLine)
    If hRSS.Pub Then txaOutput.Insert(Format(hRSS.Pub.Date, "dddd, dd.mm.yyyy hh:nn") & gb.Lf & gb.Lf)

'-- Ausgewählte Item-Eigenschaften werden ausgelesen *und* angezeigt
    For Each hRSSItem In hRSS
      If hRSSItem.Title Then txaOutput.Insert(hRSSItem.Title & gb.NewLine)
      If hRSSItem.Link Then txaOutput.Insert(hRSSItem.Link & gb.NewLine)
      If hRSSItem.Description Then txaOutput.Insert(hRSSItem.Description & gb.NewLine)
      Inc iRSSCount
      If hRSSItem.Pub Then
         If iRSSCount < hRSS.Count Then
            txaOutput.Insert(Format(hRSSItem.Pub.Date, "dddd, dd.mm.yyyy hh:nn") & gb.NewLine & gb.NewLine)
         Else
            txaOutput.Insert(Format(hRSSItem.Pub.Date, "dddd, dd.mm.yyyy hh:nn") & gb.NewLine)
         Endif
      Endif
    Next

End

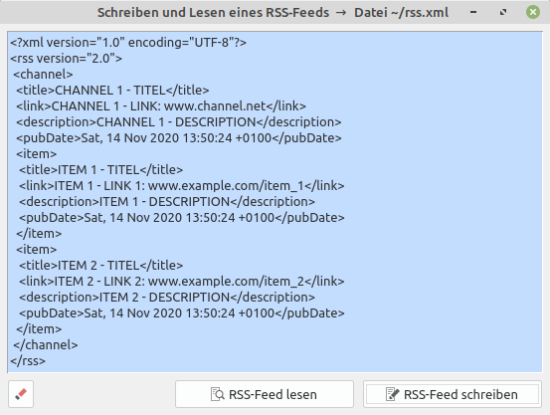

Abbildung 24.12.1.1: Inhalt RSS-Feed

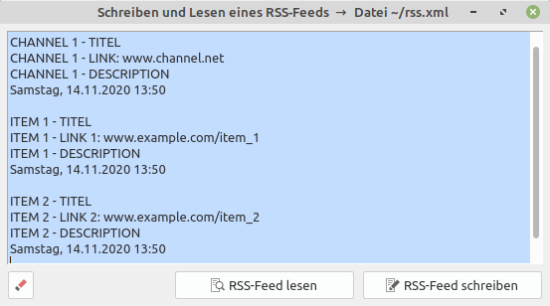

Figure 24.12.1.2: Display of selected data in the RSS feed

The source code of project 2 can be found in the download area.

Project 3 is based on project 2. The extension consists of displaying selected data in a ColumnView. The ListContainer component previously used for such use cases is considered obsolete and should no longer be used for current projects. After clicking on a row in the ColumnView, the web page whose URL is stored in the RSSItem.Link property is displayed in a WebView.

Notes:

• The selected RSS feed contains proprietary XML tags in their own namespaces that do not conform to the RSS 2.0 specification. This generates errors during parsing when using the gb.web.feed component.
• To show you Project 3 with the special way of presenting data in a ColumnView and in a WebView, an original RSS feed was shortened, all proprietary XML tags removed and the feed saved in an XML file. Parsing thus succeeds without errors because the document now conforms to the specification.
• The gb.web.feed component is currently being revised. The implementation of the RSS 2.0 specification is being maintained. However, it is intended that proprietary XML tags will be ignored in future and will then no longer generate errors during parsing.

Notice:

The project in https://gambas-buch.de/doku.php?id=k18:k18.12:start#projekt_rss-reader can be seen as an alternative in case proprietary XML tags - which must be known - are also to be processed.

You can also find the source code of project 3 in the download area.
