If you want to import only one value interactively in a program, you can use several components. One of them is the ValueBox component, whose properties and use are described in this chapter. You have to check the entered data for further use in your programs - such as the IP addresses, for example - to some extent yourself. But it is also unusual to be able to enter a time of 7:90, which leads internally to a time of 8:30 o' clock. You can assign a defined start value to each Valuebox. The set property ValueBox. read-only is only accepted for the types Number and Currency, but it can be read for all types. Six different types are available for the Valuebox:

• Real number,
• Date,
• Time,
• Currency,
• Date/time (DateTime),
• IP address.

(1) Type Number
Only digits are accepted in the Valuebox of type Number and the comma as decimal separator. A dot is immediately converted to a comma if the German language setting is selected.

(2) Type Date
A selected date is only transferred to the display with a double-click. The date displayed cannot be edited.

(3) Type Time
The time can be taken over from a list (time interval 30 minutes) by double-clicking on the clock symbol. Use the cursor keys to navigate through the list. You can also enter the time directly in the format hh: mm - but with leading zero - and then edit this time.

ATTENTION: You can also enter a time of 27:88 o' clock, because an interval of 00 to 99 is allowed for both the hours and minutes. The time of issue is then 7:60 but 8:00. The input 60:99 o' clock becomes 13:39 o' clock (60h: 24= 2d+12h; 99min: 60=1h+39min. Thus 13h+39min are displayed as remaining time in the 24-hour interval! Unusual - but has a system.

(4) Type Currency
Money amounts - in Germany in euros - are entered separately with euro and cent with the decimal sign! Only the comma is allowed as decimal separator. The currency symbol is only displayed in the Valuebox. Internally, only the numerical value is stored. You can only enter positive currency amounts.

(5) Type DateTime
You can select the date from the calendar and the time from the displayed list with a time difference of 30 minutes. Both values are transferred to the display by double-clicking. You can correct the values in the Valuebox. In the DateTime type Valuebox, in contrast to the Time type, you can only use the following intervals for hours 00.. 23 and minutes 00… 59. In the DateTime type Valuebox, you can only use the following intervals for hours 00… 23 and minutes 00… 59.

(6) IP address in IPv4 format
To enter, place the corsor at the first position after the last digit (default is zero) and then enter the number triple in blocks. Use the two cursor keys (> and <) to switch to the other input fields. Leading zeros are suppressed in the Valuebox. You have to check the correctness of the IP address yourself, because the entries of the numerical triple are accepted for a block in the interval of 0 to 999 (!):

Public Sub btnIPAdress_Click()
  Dim aMatrix As String[]
  Dim iCount As Integer
  Dim sMessage As String

  txbDisplay.Clear
  txbDisplay.Alignment = Align.BottomRight
  txbDisplay.Text = valBoxIPAdress.Value
  aMatrix = Split(valBoxIPAdress.Value, ".")

  For iCount = 0 To aMatrix.Max
    sMessage = "Die IP-Adresse ist im " & (icount + 1) & ". Block fehlerhaft (" & aMatrix[iCount] & ") !"
    If Val(aMatrix[iCount]) < 0 Or Val(aMatrix[iCount]) > 255 Then
       Message.Error(sMessage)
       valBoxIPAdress.SetFocus
    Endif
  Next ' iCount
End ' IPAdress_Click

}}

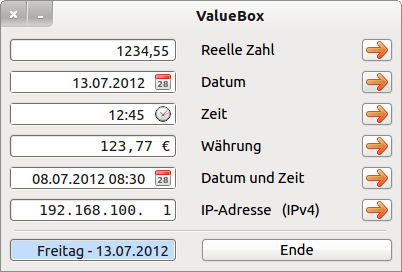

Figure 16.9.1: Valuebox - 6 types

The source code for a project to demonstrate the use of the 6 types of a Valuebox is given here in full:

' Gambas class file

Public Sub Form_Open()

  FMain.Center
  FMain.Resizable = False
  btnEnde.Cancel = True ' Programm-Ende mit ESC-Taste

  valBoxNumber.Type = valBoxNumber.Number
' valBoxNumber.ReadOnly = True
  valBoxDate.Type = valBoxDate.Date
  valBoxTime.Type = valBoxTime.Time
  valBoxCurrency.Type = valBoxCurrency.Currency
' valBoxCurrency.ReadOnly = True
  valBoxDateTime.Type = valBoxDateTime.DateTime
  valBoxIPAdress.Type = valBoxIPAdress.IPAddress
  valBoxIPAdress.Value = "192.168.100.11"

End ' Form_Open

Public Sub btnNumber_Click()
  txbDisplay.Clear
  txbDisplay.Alignment = Align.BottomRight
  txbDisplay.Text = valBoxNumber.Value
End ' Number_Click

Public Sub btnDate_Click()
  txbDisplay.Clear
  txbDisplay.Alignment = Align.BottomRight
  txbDisplay.Text = Format$(valBoxDate.Value, "dddd - dd.mm.yyyy")
End ' Date_Click

Public Sub btnTime_Click()
  txbDisplay.Clear
  txbDisplay.Alignment = Align.BottomRight
  txbDisplay.Text = Format$(valBoxTime.Value, "hh:nn") & " Uhr"
End ' Time_Click

Public Sub btnCurrency_Click()
  txbDisplay.Clear
  txbDisplay.Alignment = Align.BottomRight
  txbDisplay.Text = valBoxCurrency.Value & " Euro"
End ' Currency_Click

Public Sub btnDateTime_Click()
  txbDisplay.Clear
  txbDisplay.Alignment = Align.BottomRight
  txbDisplay.Text = Format$(valBoxDateTime.Value, "dd.mm.yyyy - hh:nn") & " Uhr"
End ' DateTime_Click

Public Sub btnIPAdress_Click()
  Dim aMatrix As String[]
  Dim iCount As Integer
  Dim sMessage As String

  txbDisplay.Clear
  txbDisplay.Alignment = Align.BottomRight
  txbDisplay.Text = valBoxIPAdress.Value

  aMatrix = Split(valBoxIPAdress.Value, ".")
  For iCount = 0 To aMatrix.Max
    If Val(aMatrix[iCount]) < 0 Or Val(aMatrix[iCount]) > 255 Then
       sMessage = "IP-Adresse im " & (icount + 1) & ". Block fehlerhaft (" & aMatrix[iCount] & ") !"
       Message.Error(sMessage)
       valBoxIPAdress.SetFocus
    Endif
  Next ' iCount
End ' IPAdress_Click

Public Sub btnEnde_Click()
  FMain.Close
End ' Close

In the download area you will find the source repository.
