27.5.2 Class RpcClient

You can create an object of the class RpcClient (gb.xml.rpc) in this way:

Dim hRpcClient As RpcClient
hRpcClient = New RpcClient(remoteFunction As RpcFunction)  As "EVENT-NAME"

Note that you must have defined all the properties of a (new) RPC function before you can create a new RPC client object.

27.5.2.1 Properties

The class RpcClient has three properties:

Property	Data type	Description
Mode	Integer	Specifies or sets the mode for the internally used HTTP server. These three constants can be used as values for the Mode property: Const offLine As Integer = 0, Const httpSync As Integer = 1 and Const httpAsync As Integer = 2.
RpcMethod	RpcFunction	This property can only be read and returns an Rpc function.
URL	String	The URL consists of the server's locator with the subsequent port number on which the XML RPC server listens. Example: localhost: 1088

Table 27.5.2.1.1: Properties of the RpcClient class

27.5.2.2 Methods

The class RpcClient has only these two methods:

Method	Return type	Description
Function Call (Data As Variant[])	Variant	Returns the function value of the method call. Data is a variant array with the arguments passed to the server.
Function EvalReply (sCad As String)	Variant	Returns the data part of an XML-RPC response. This data can be of the following types: integer, float, string, boolean, array or structure.

Table 27.5.2.2.1: Methods of the class RpcClient

27.5.2.3 Client Project 1

For the first project, an XML-RPC-Server is started as the server for the first project → chapter 27.5.1 RPC-Server, which offers its services on a PC locally on port 1088. Port 1088 was chosen because it is above the first standard ports (>1023) and because it is not officially used or reserved. The following four functions can be called by the client via the RPC interface:

system. methodHelp - The method' system. methodHelp' returns the help text if a help text is defined for the special method with RpcServer. help. Otherwise it returns an empty string.

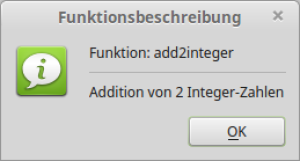

Figure 27.5.2.3.1: Documentation of the add2integer function

system. methodSignature - The method' system. methodSignature' returns an array of known signatures (as an array of arrays) for the special method name. If no signatures are known, it returns an empty array.

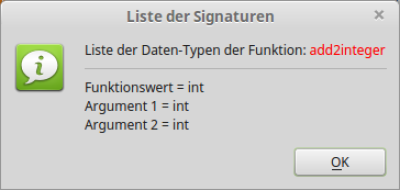

Figure 27.5.2.3.2: List of the signature of the add2integer function

system. listMethods - The system. listMethods method lists all methods as elements in an array that are implemented for the RPC interface on the XML RPC server. The call takes place without arguments - the array of arguments is empty.

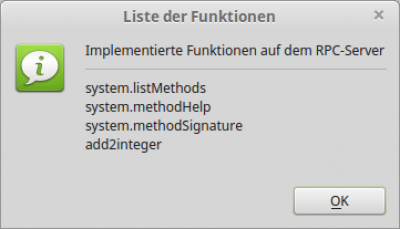

Figure 27.5.2.3.3.3: List of implemented functions

add2integer - This method returns as a function value the sum of two integer numbers passed as argument.

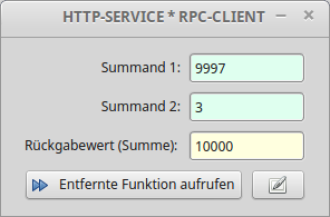

Figure 27.5.2.3.3.4: Call of the method add2integer

Pay attention: In both projects, the data type and integer area are not checked for the two summands.

The source code for the XML RPC client is specified in full:

' Gambas class file

Private $sRPCURL As String
Private hXMLRPCFunction As RpcFunction
Private hXMLRPCClient As RpcClient
Private $aArguments As Variant[]
Private $sRPCFunctionName As String

Public Sub Form_Open()
  FMain.Resizable = False
  FMain.Title = "HTTP-SERVICE * RPC-CLIENT"
  txbSumme.ReadOnly = True
' $sRPCURL = "0.0.0.0:1088"
' $sRPCURL = "192.168.2.101:1088"
' $sRPCURL = "127.0.0.1:1088"
  $sRPCURL = "localhost:1088" ' This Port officially not used or reserved
  $sRPCFunctionName = "add2integer"
End

Public Sub btnGetResult_Click()
  GetResult()
End

Public Sub btnGetInformation_Click()
  GetDoc()
  GetSignatures()
  GetMethods()
End
Public Sub txbSummand1_Change()
  txbSumme.Clear()
End

Public Sub txbSummand2_Change()
  txbSumme.Clear()
End

Private Sub GetResult()

  Dim iResult As Integer

  $aArguments = New Variant[]
  hXMLRPCFunction = New RpcFunction($sRPCFunctionName, [XmlRpc.xInteger, XmlRpc.xInteger], XmlRpc.xInteger)
  hXMLRPCClient = New RpcClient(hXMLRPCFunction) As "hXMLRPCClient"
  hXMLRPCClient.URL = "http://" & $sRPCURL

  $aArguments.Add(CInt(txbSummand1.Text))
  $aArguments.Add(CInt(txbSummand2.Text))

  Try iResult = hXMLRPCClient.Call($aArguments)
  If Not Error Then
     txbSumme.Text = Str(iResult)
  Else
     Message.Error(("Error-Text: ") & Error.Text & gb.NewLine &
                   ("Error-Location:  ") & Error.Where & gb.NewLine &
                   ("URL: '") & $sRPCURL & " '")
  Endif

End

Private Sub GetDoc()

  Dim sResult As String

  $aArguments = New Variant[]
  hXMLRPCFunction = New RpcFunction("system.methodHelp", [XmlRpc.xString], XmlRpc.xString)
  hXMLRPCClient = New RpcClient(hXMLRPCFunction) As "hXMLRPCClient"
  hXMLRPCClient.URL = "http://" & $sRPCURL

  $aArguments.Add("add2integer")

  Try sResult = hXMLRPCClient.Call($aArguments)
  If Not Error Then
     Message.Title = ("Description of the function")
     Message.Info(("Function: ") & $sRPCFunctionName & "<hr>" & sResult)
  Else
     Message.Error(("Error-Text: ") & Error.Text)
  Endif

End

Private Sub GetSignatures()

  Dim aResult As New RpcArray
  Dim sMessage As String
  Dim iIndex As Integer

  $aArguments = New Variant[]
  hXMLRPCFunction = New RpcFunction("system.methodSignature", [XmlRpc.xString], XmlRpc.xArray)
  hXMLRPCClient = New RpcClient(hXMLRPCFunction) As "hXMLRPCClient"
  hXMLRPCClient.URL = "http://" & $sRPCURL

  $aArguments.Add("add2integer")

  Try aResult = hXMLRPCClient.Call($aArguments)
  If Not Error Then
     Message.Title = ("List of data types")
     sMessage = ("List of data types of the function")
     sMessage &= "<font color='red'>" & $sRPCFunctionName & "</font>"
     sMessage &= "<hr>"
     For iIndex = 1 To aResult.Count
       If iIndex = 1 Then
          sMessage &= ("Function value ") & " = " & aResult[iIndex - 1] & gb.NewLine
       Else
          If iIndex = aResult.Count Then
             sMessage &= "Argument " & Str(iIndex - 1) & " = " & aResult[iIndex - 1]
          Else
             sMessage &= "Argument " & Str(iIndex - 1) & " = " & aResult[iIndex - 1] & gb.NewLine
          Endif
       Endif
     Next
     Message.Info(sMessage)
  Else
     Message.Error(("Error-Text: ") & Error.Text)
  Endif
End

Private Sub GetMethods()

  Dim aResult As New RpcArray
  Dim sMessage As String
  Dim iIndex As Integer

  $aArguments = New Variant[]
  hXMLRPCFunction = New RpcFunction("system.listMethods", [], XmlRpc.xArray)
  hXMLRPCClient = New RpcClient(hXMLRPCFunction) As "hXMLRPCClient"
  hXMLRPCClient.URL = "http://" & $sRPCURL

  Try aResult = hXMLRPCClient.Call($aArguments)
  If Not Error Then
     Message.Title = ("List of funktions")
     sMessage = ("Functions on the RPC server") & "<hr>"
     For iIndex = 1 To aResult.Count
       sMessage &= aResult[iIndex - 1] & gb.NewLine
     Next
     Message.Info(sMessage)
  Else
     Message.Error(("Error-Text: ") & Error.Text)
  Endif

End

27.5.2.4 Client Project 2

In contrast to the first project, an XML-RPC-Server is only started if the PHP file xmlrpc.server.php is called in the web folder ~/public_html → chapter 27.5.1 and 24.13. Therefore, the source code for Client2 differs from Client1 from Project 1 mainly in the different diction of the URL. As a function, add2integer is implemented as in the first project.

' Gambas class file

Private $sRPCURL As String

Public Sub Form_Open()
  FMain.Resizable = False
  FMain.Title = "WEBSERVICE * RPC-CLIENT"
  txbSumme.ReadOnly = True
  $sRPCURL = "localhost/~" & System.User.Name &/ "xmlrpc.server.php"
End

Public Sub btnGetResult_Click()
  GetResult()
End

Public Sub txbSummand1_Change()
  txbSumme.Clear()
End

Public Sub txbSummand2_Change()
  txbSumme.Clear()
End

Private Sub GetResult()

  Dim hXMLRPCClient As RpcClient
  Dim hXMLRPCFunction As RpcFunction
  Dim aArguments As New Variant[]
  Dim iResult As Integer

  hXMLRPCFunction = New RpcFunction("add2integer", [XmlRpc.xInteger, XmlRpc.xInteger], XmlRpc.xInteger)

  hXMLRPCClient = New RpcClient(hXMLRPCFunction) As "hXMLRPCClient"
  hXMLRPCClient.URL = "http://" & $sRPCURL

  aArguments.Add(CInt(txbSummand1.Text))
  aArguments.Add(CInt(txbSummand2.Text))

  Try iResult = hXMLRPCClient.Call(aArguments)
  If Not Error Then
     txbSumme.Text = Str(iResult)
  Else
     Message.Error("Error-Text:   " & Error.Text & gb.NewLine &
                   "Error-Location:    " & Error.Where & gb.NewLine &
                   "URL:   '" & $sRPCURL & " '")
  Endif

End

The result of the algebraic addition will probably not surprise you:

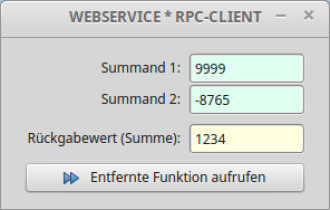

Figure 27.5.2.4.1: Calling the add2integer function implemented on an RPC server (PHP)
