The component gb. gui. trayicon with the two classes TrayIcon and TrayIcons is described in chapter 19.2. This chapter deals with assigning a context menu to a tray icon, which can be called up with the right mouse button in the task bar above the tray icon. If you want to run a Gambas program in the background, you can use the class TrayIcon to access the program via an icon in the task bar. This has the advantage that you always have access to the program interface, or alternatively you can call up selected subprograms in a context menu assigned to the tray icon. The menu is declared in a module in the presented project. You can also create it with the menu editor, whose description can be found in Chapter 13.2 Menu Editor.

Since not every reader has a USB interface for temperature measurement and the class TrayIcon is especially interesting for programs that work hidden for a long time and signal their presence only by an icon in the taskbar, a simulation project is presented to you. The temperature values are generated and displayed randomly in a specified temperature range. The temperature values are also logged in a log file:

MEASUREMENT PROTOCOL
DATE: 14. February 2018
----------------------------
>  09:47:56  |  T = 22,3 °C
>  09:47:57  |  T = 22,1 °C
>  09:47:58  |  T = 21,8 °C
>  09:47:59  |  T = 21,0 °C
>  09:48:00  |  T = 21,5 °C
>  09:48:01  |  T = 20,3 °C
>  09:48:02  |  T = 19,9 °C

The program section dedicated to the tray icon context menu has been saved in a module. In this module, the

• first declares a menu,
• then assigned to this menu three further menus as submenus and
• finally describes the actions that should be triggered when the menus are called up in the context menu.

The source code for the module MTI (module TrayIcon) does not come as a surprise:

[1] ' Gambas module file
[2]
[3] Public M10MainMenu As Menu
[4] Public M11ProgramHideShow As Menu
[5] Public M12ShowData As Menu
[6] Public M13CloseExperiment As Menu
[7]
[8] Public Sub CreateMenu()
[9]
[10] ' True -> The menu is NOT displayed in the main program!
[11]   M10MainMenu = New Menu(FMain, True) As "Menu"
[12]   M10MainMenu.Text = ("Caption")
[13]
[14] ' This property is required for the assignment as pop-up menu of the tray icon!
[15]   M10MainMenu.Name = "M10MainMenu"
[16]
[17]   M11ProgramHideShow = New Menu(M10MainMenu) As "M11ProgramHideShowShow"
[18]   M11ProgramHideShow.Text = ("Hide program")
[19]   M11ProgramHideShow.Picture = Picture["icon:/16/down"]
[20]
[21]   M12ShowData = New Menu(M10MainMenu) As "M12ViewData"
[22]   M12ShowData.Text = ("Display data")
[23]   M12ShowData.Picture = Picture["icon:/16/view-icon"]
[24]
[25]   M13CloseExperiment = New Menu(M10MainMenu) As "M13CloseExperiment"
[26]   M13CloseExperiment.Text = ("Close experiment")
[27]   M13CloseExperiment.Picture = Picture["icon:/16/quit"]
[28]
[29] End
[30]
[31] Public Sub M11ProgramHideShowShow_Click()
[32]   If M11ProgramHideShow.Text = ("Hide program") Then
[33]      FMain.Visible = False
[34]      M11ProgramHideShow.Text = ("Show program")
[35]      M11ProgramHideShow.Picture = Picture["icon:/16/up"]
[36]   Else
[37]      FMain.Visible = True
[38]      M11ProgramHideShow.Text = ("Hide program")
[39]      M11ProgramHideShow.Picture = Picture["icon:/16/down"]
[40]   Endif
[41] End
[42]
[43] Public Sub M12ViewData_Click()
[44]   Message.Info(("Measurement data are displayed ..."))
[45] End ' M12ViewData
[46]
[47] Public Sub M13CloseExperiment_Click()
[48]      FMain.Close()
[49] End

The complete project for the simulation of a long-term temperature measurement can be found in the long. time. experiment. tar. gz repository in the download area. The source code for the main program can also be found at the end of the chapter.

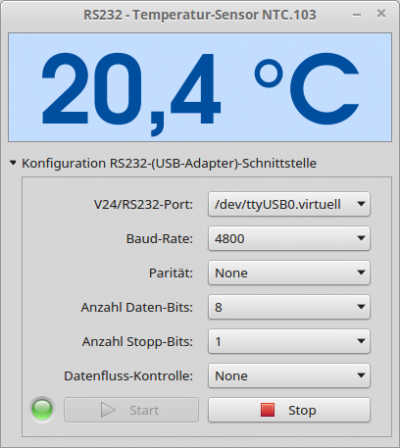

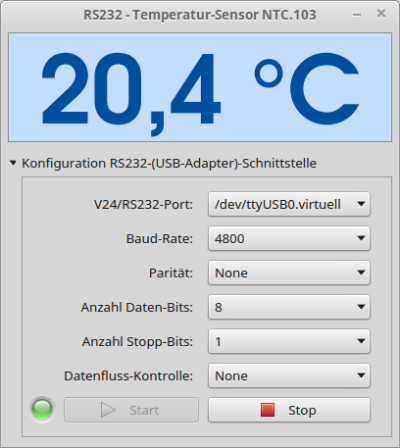

Figure 13.6.1: GUI of the simulation project

Hints:

• In the system menu bar (task bar) you will find the tray icon after starting the program, which was designed in the Gambas IDE in the image editor.
• You can call up a program help by clicking the tray icon with the left mouse button. This help is not fully formulated in this project.
• A right-click above the tray icon opens a context menu with 3 menus for selected program actions:

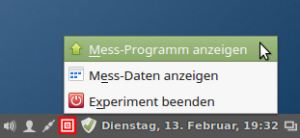

Figure 13.6.2: Contents of the context menu for the tray icon

• The stored measurement data are not evaluated and displayed in this project. For this purpose, only one note is output in a message box that refers to the fact that you can insert this at this point.

In the following source code, important sections are highlighted in color:

' Gambas class file

Public timerDataLog As Timer
Public timerReadData As Timer
Public timerSimulation As Timer
Public fTemperature As Float

Public hTrayIcon As TrayIcon

Public Sub Form_Open()

  FMain.Resizable = False
  FMain.Height = 160
  expRX_TX.Hidden = True
  expRX_TX.Animated = True

  SetRS232Parameters()

  timerSimulation = New Timer As "timerSimulation"
' Generate a random temperature value from the specified interval every 100 ms
  timerSimulation.Delay = 100

  timerReadData = New Timer As "timerReadData"
' The current temperature value is read out every 1000 ms
  timerReadData.Delay = 1000

  timerDataLog = New Timer As "timerDataLog"
' Time interval of data storage in a log file
  timerDataLog.Delay = 3000 * 1

  SetLEDColor(picStatus, "red")
  btnExperimentStop.Enabled = False

  hTrayIcon = New TrayIcon As "hTrayIcon"
  hTrayIcon.Icon = Picture["Symbols/experiment.png"]
  hTrayIcon.Tooltip = ("Long time experiment")
  hTrayIcon.Visible = False
  MTI.CreateMenu()
' The menu declared in the module MTI.module is assigned to the tray icon as a context menu.
  hTrayIcon.PopupMenu = MTI.M10MainMenu.Name

End

Public Sub btnExperimentStart_Click()

  GetRS232Parameters()

  If Exist(Application.Path &/ "rs232.log") Then
     If Message.Question(("Should the last measurement log be deleted?"), ("Yes"), ("No")) = 1 Then
        Try Kill Application.Path &/ "rs232.log"
        AddTextToFile(("Log of measurement data") & gb.NewLine)
        AddTextToFile(("Date") & ":  " & Format(Now, "dd. mmmm yyyy"))
        AddTextToFile("------------------------------")
     Endif
  Else
     AddTextToFile(("Log of measurement data"))
     AddTextToFile(("Date") & ":  " & Format(Now, "dd. mmmm yyyy"))
     AddTextToFile("-------------------------------")
  Endif

  btnExperimentStart.Enabled = False
  btnExperimentStop.Enabled = True
  SetLEDColor(picStatus, "green")
  lblTemperaturAnzeige.Text = "--- °C"

  timerSimulation.Start()
  timerSimulation.Trigger()
  timerReadData.Start()
  timerReadData.Trigger()
  timerDataLog.Start()
  timerDataLog.Trigger()

  expRX_TX.Hidden = True

  MTI.M11ProgramHideShow.Text = ("Show measuring program")
  MTI.M11ProgramHideShow.Picture = Picture["icon:/16/up"]

  FMain.Hide()
  hTrayIcon.Show()

End

Public Sub btnExperimentStop_Click()

  timerSimulation.Stop()
  timerReadData.Stop()
  timerDataLog.Stop()
  btnExperimentStart.Enabled = True
  btnExperimentStop.Enabled = False
  SetLEDColor(picStatus, "red")
  lblTemperaturAnzeige.Text = "--- °C"

End

Public Sub TimerSimulation_Timer()

  Dim aRange As Float[] = [19.0, 22.0]

  Randomize
  fTemperature = Round(Rnd(aRange[0], aRange[1]), -1)

End

Public Sub timerReadData_Timer()
  lblTemperaturAnzeige.Text = Str(fTemperature) & " °C"
End

Public Sub timerDataLog_Timer()
  AddTextToFile(">  " & Format(Now, "hh:nn:ss") & "  |  " & "T = " & Str(fTemperature) & " °C")
End

Public Sub expRX_TX_Hide()
  FMain.Height = 160
  expRX_TX.Hidden = True
End

Public Sub expRX_TX_Show()
  FMain.Height = 430
  expRX_TX.Hidden = False
End

Public Sub AddTextToFile(Text As String)

  Dim hFile As File
  Dim FilePath As String

  FilePath = Application.Path &/ "rs232.log"

  Try hFile = Open FilePath For Append
  If Error Then
     Message.Error(("File error"))
     Return
  Endif
  Print #hFile, Text
  Close #hFile
End

Public Sub hTrayIcon_Click()
  Message.Info(("I am the little program help..."))
End

Public Sub hTrayIcon_MiddleClick()
  FMain.Close()
End

Public Sub hTrayIcon_Scroll(Delta As Float, Orientation As Integer)
  If Orientation = TrayIcon.Vertical Then Print "VERTICAL"
  Print Delta
End

Private Sub SetRS232Parameters()

  Dim aDataFlow As New String[]

  aDataFlow.Add("None")
  aDataFlow.Add("XON/XOFF")
  aDataFlow.Add("RFR/CTS")
  aDataFlow.Add("RFR/CTS + XON/XOFF")
  cmbFlow.List = aDataFlow

  cmbRS232Port.List = [("/dev/ttyUSB0.virtual")]
  cmbSpeed.List = ["4800", "9600", "2400"]
  cmbParity.Add("None")
  cmbParity.Add("Even")
  cmbParity.Add("Odd")
  cmbDataBits.List = ["8", "7", "6", "5"]
  cmbStopBits.List = ["1", "2"]

End

Private Sub GetRS232Parameters()

  RS232.PortName = cmbRS232Port.Text
' Setting the transmission parameters
  RS232.Speed = cmbSpeed.Text
  RS232.Parity = cmbParity.Index
  RS232.DataBits = cmbDataBits.Text
  RS232.StopBits = cmbStopBits.Text
  RS232.FlowControl = cmbFlow.Index

End

Private Sub SetLEDColor(picBox As PictureBox, sLEDColor As String)
  picBox.Picture = Picture["LED/led_" & sLEDColor & ".svg"]
End

Public Sub Form_Close()

  If Message.Question(("Finish this experiment?"), ("Yes"), ("No")) = 1 Then
     hTrayIcon.Hide()
     FMain.Close()
  Endif

End
