GAMBAS BOOK 3.19.5

The unobtrusive DirBox (gb.form) control implements a directory selection box:

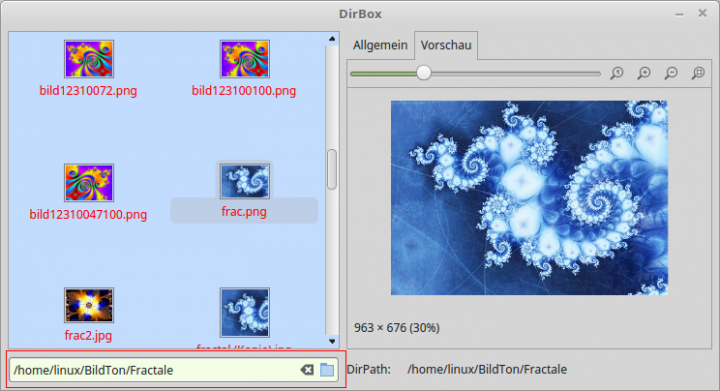

Figure 6.9.1.1: DirBox control with other controls (FileView and FileProperties)

The selection dialogue for a directory is started by clicking on the directory symbol at the right end of the text field of the DirBox - marked in red:

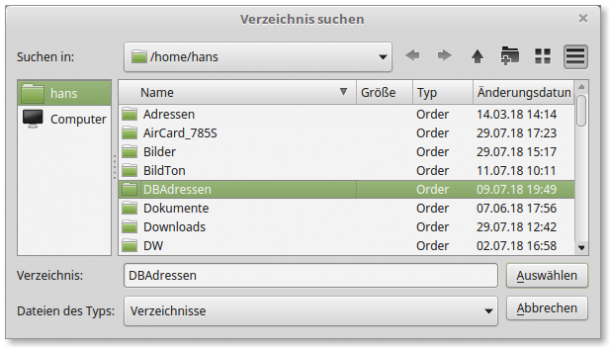

Figure 6.9.1.2: Selection dialogue with selected directory “DBAdressen”.

The selected directory is taken over with “Select”. The directory path is then in the text field of the directory selection box. The text field has the property “ReadOnly”. The control element can be created:

Dim hDirBox As DirBox
hDirBox = New DirBox ( Parent As Container ) As "EventName"

The DirBox class has these two properties, among others:

Table 6.9.1.1 : Properties of the DirBox class

The DirBox class has these events, among others:

Table 6.9.1.2.1 : Events of the DirBox class

You can read the value of the DirBox.Value property and store it in a variable sDirPath, for example.

' Gambas class file

Public sDirPath As String

Public Sub Form_Open()

  FMain.Resizable = False
  DirBox1.Value = User.Home ' (Start-)Folder
  sDirPath = DirBox1.Value
  lblDirPath.Text = DirBox1.Value
  FileView1.Dir = DirBox1.Value
  FileView1.ShowPreview = True
  FileView1.ShowHidden = True
  FileView1.Background = &HC3DDFF
  FileView1.Foreground = Color.Red
  FileView1.Mode = Select.Single
  FileView1.Filter = ["*.txt", "*.png", "*.pd*", "*.jp*", "*.xml"]
  FileView1.IconSize = 48 ' Default-Value = 32
  FileProperties1.Path = DirBox1.Value

End

Public Sub DirBox1_Change()

  sDirPath = DirBox1.Value
  FileView1.Dir = DirBox1.Value
  lblDirPath.Text = DirBox1.Value

End

Public Sub FileView1_Click()

  FileProperties1.Path = sDirPath &/ FileView1.Current

End

Controls of the Dialog class (gb.qt4) for selecting files or directories such as OpenFile or SelectDirectory or SaveFile for saving files are described in Chapter 12.
