GAMBAS BOOK 3.19.5

With the component gb.inotify by Tobias Boege you can access the linux-specific interface “inotify” in Gambas programs. Information about this interface can be found at https://wiki.ubuntuusers.de/inotify. The interface allows you to intercept selected file system events. You can thus monitor a path of the file system behind which a file or directory may be located.

However, when using the component, please note the following:

• It does not specify how long apart the occurrence of a file system event and the occurrence of the corresponding Gambas event can be.
• For example, if a file is created, the Gambas process may a priori not know about it until an hour later. By that time, however, the file may have been deleted. This is in the nature of things, because file system events are asynchronous.
• Under normal operating load on the computer, however, the kernel makes an effort to send the events promptly.
• A Gambas program using the Watch single class of the gb.inotify component is notified by the Linux kernel of activity in the watched directory, where Gambas events of the Watch object are evaluated.

The Watch class (gb.inotify) represents a file system object to be monitored. You can create the class. The class behaves like a static array whose values can only be read. Watching a directory is not recursive for its subdirectories. This means that you only get events from the directory itself and for its immediate entries. However, you can create a separate watch object for each subdirectory of a base directory and even monitor subdirectories created at runtime with the create event.

You can create Watch objects regularly using the New instruction. The signature of the constructor is as follows:

hWatch = New Watch ( Path As String [ , NoFollowLink As Boolean, Events As Integer ] ) As "EventName"

First, the path of the file system entry to be watched is specified. With the optional parameter NoFollowLink you can forbid following symbolic links when interpreting your path. By default, links are followed. The last optional argument Events is a bitmask of events to monitor. Use the constants of the Watch class for this. For example, if you want to monitor the create and delete events of a path sPath, create the Watch object like this:

hWatch = New Watch(sPath, False, Watch.Create + Watch.Delete) As „MyWatch”

If you do not specify the events mask, the Watch class automatically determines all events for which you have created event handlers under the specified event name. If you have entered

Private $hWatch As Watch

Public Sub Form_Open()
  ...
  $hWatch = New Watch(sPath) As "MyWatch"
End

Public Sub MyWatch_Create()
  ...
End

Public Sub MyWatch_Delete()
  ...
End

the Watch class recognises that you want to intercept Create and Delete events from MyWatch and sets these - and only these - events to receivable. For performance reasons, you should never specify more events in the Events mask than you need. You can later change the receivable events via the Events property of the Watch class. You use this property like an array of Boolean values and index them using the Watch constants:

$hWatch.Events[Watch.Create] = False ' Create events are now no longer receivable
$hWatch.Events[Watch.Move] = True ' Instead, the Move event is now of interest

Note that the only job of Watch objects is to trigger events! If you forget to give a Watch object an event name, it cannot trigger events and is useless.

The Watch class has four static properties that provide additional information for event handlers and should only be used in such. The static properties are used to store data from the kernel during event handler routines.

Table 6.8.2.1.1 : Static properties of the Watch class

Table 6.8.2.2.1 : Properties of the class Watch

The Watch class has only these two methods:

Table 6.8.2.3.1 : Methods of the Watch class

The Watch class has these events:

Table 6.8.2.4.1 : Events of the class Watch

As you can see, the meaning and interpretation of an event depends on whether a file or directory is being watched.

The project demonstrates the monitoring of selected temporary directories and a temporary file. The file and the directories are created at runtime and edited in different ways (open, change, move, delete).

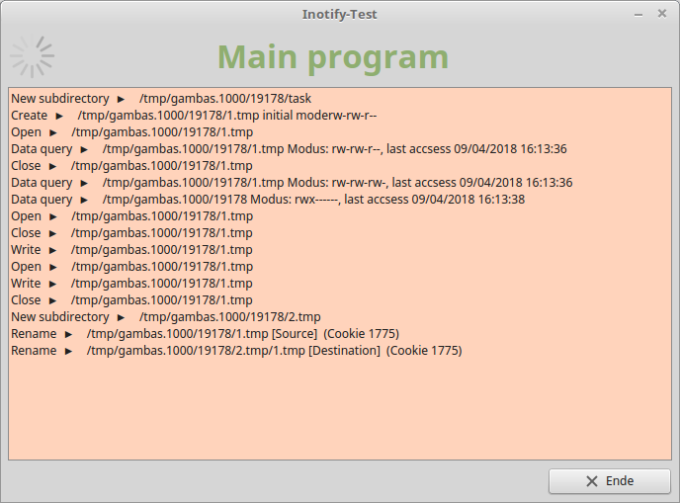

Figure 6.8.3.1: Monitoring protocol

The special feature of this project is the triggering of events by an external script. It must be realised via a task, because on the one hand the monitoring should take place as close to real time as possible and on the other hand the task in the project is there to provide for events so that you automatically get to see something when you start the project (task object in chapter 20.6.0). If the script were to be executed synchronously, then all editing of the directories and the file would first take place and only later would all monitoring results be received. In the source text you can also see that a separate Watch object is created for each new directory and inserted into a Watch[ ] array. The corresponding entry in the $aSubDirs array of the type Watch[ ] is removed when the object to be watched has been deleted. If - without a task - the events were only received after the entire script has run through, the created subdirectory would already be deleted when the Gambas process receives its create event. Thus, it can no longer be monitored and, in particular, the process does not receive the (past) events that occurred below this subdirectory.

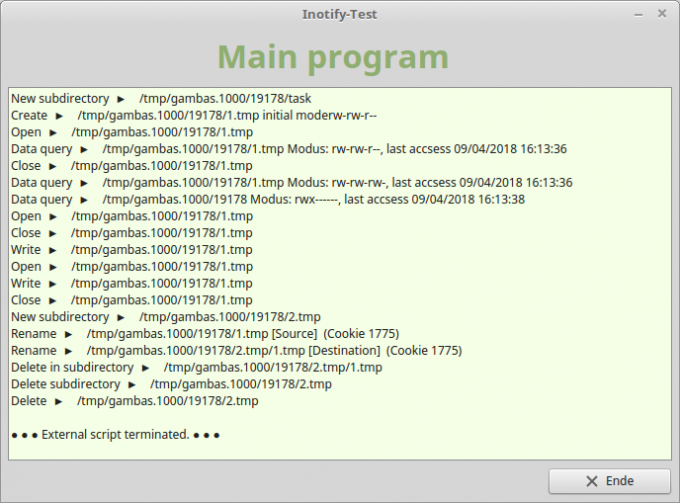

Figure 6.8.3.2: Monitoring log - end

The processing of the directories and the file is done by the own class in ExternalScript.class.

The source code for the presented project is given in full. The source code of the class ExternalScript.class follows:

' Gambas class file

Inherits Task

Private $sFile As String
Private $sDir As String

Public Sub _new(sFile As String, sDir As String)
  $sFile = sFile
  $sDir = sDir
End

Public Sub Main()
  Shell Subst$("touch &1;  sleep 1; chmod a+w &1; sleep 1;"
  "touch &3;  sleep 1; cat &1; sleep 1;"
  "echo 'test' > &1; sleep 2;"
  "mkdir &2; sleep 1; mv &1 &2; sleep 1;"
  "rm &4; sleep 1; rmdir &2; sleep 1", $sFile, $sDir, File.Dir($sFile), $sDir &/ File.Name($sFile)) Wait
  Print "Finished"
  Flush
  Do ' Wait for the main process to finish the task
    Wait 1
  Loop
End

Source code FMain.class:

' Gambas class file

Private $hTmp As Watch
Private $aSubdirs As New Watch[]
Private $hScript As ExternalScript

Public Sub Form_Open()

  Dim sFile As String = Temp$()
  Dim sDir As String = Temp$()

  FMain.Resizable = False
  TextArea1.ReadOnly = True
  $hTmp = New Watch(File.Dir(sFile)) As "Tmp"
' The script must be a task because the events are as close as possible to each other.
' at the time they are triggered. If the script would be executed in this process,
' you received the events after the complete script has run. So could For example,
' you cannot intercept events in the subdirectories created at runtime.
  $hScript = New ExternalScript(sFile, sDir) As "ExternalScript"
  Spinner1.Start()
End

Public Sub ExternalScript_Read(Data As String)
  If Trim$(Data) <> "Finished" Then Return
  $hScript.Stop() ' Stops the task as a background process
  TextArea1.Insert(gb.NewLine & "● ● ● External script terminated. ● ● ●")
  TextArea1.Background = &HF5FFE6
  Spinner1.Stop()
  Spinner1.Visible = False
End

Public Sub Tmp_Read()
  Note("Lesen")
End

Public Sub Tmp_Create()

  Dim hSubdir As Watch

  If Watch.IsDir Then
' The following try is necessary here to intercept a 'race condition':
' The Subdirectory could have been created and deleted before this
' event handler has been called. The New Watch(..) could fail because
' edit a Create event whose subject has already been deleted.
     Try hSubdir = New Watch(Last.Path &/ Watch.Name) As "Subdir"
     If Not Error Then
        Note("New subdirectory")
        $aSubdirs.Add(hSubdir)
     Endif
  Else
     Note("Create", "initial mode" & Stat(Last.Path &/ Watch.Name).Auth)
  Endif
End

Public Sub Tmp_Open()
  Note("Open")
End

Public Sub Tmp_Close()
  Note("Close")
End

Public Sub Tmp_Write()
  Note("Write")
End

Public Sub Tmp_Move()
  Note("Rename")
End

Public Sub Tmp_MoveFrom()
  Note("Rename", "[Source]", Subst$(" (Cookie &1)", Watch.Cookie))
End

Public Sub Subdir_MoveTo()
  Note("Rename", "[Destination]", Subst$(" (Cookie &1)", Watch.Cookie))
End

Public Sub Tmp_Delete()
  Note("Delete")
End

Public Sub Subdir_Delete()
  Note(Subst$("Delete &1subdirectory", IIf(Watch.Name, "in ", "")))
  If Not Watch.Name Then $aSubdirs.Remove($aSubdirs.Find(Last))
End

Public Sub Tmp_Stat()
  With Stat(Last.Path &/ Watch.Name)
    Note("Data query", Subst$("Modus &1, last accsess &2", .Auth, .LastAccess))
  End With
  Catch
' Last.Path &/ Watch.Name might no longer exist and Stat might fail.
End

' The three dots indicate that the Note() procedure has a variable argument list.
' After the mandatory parameter sWhat, k >= 0 other arguments of any type can follow.
' Read more about this at http://gambaswiki.org/wiki/lang/methoddecl and
' http://gambaswiki.org/wiki/comp/gb/param
Private Sub Note(sWhat As String, ...)

  Dim sArg As String

  TextArea1.Insert(sWhat & "  ►    " & Last.Path &/ Watch.Name)
  For Each sArg In Param
    TextArea1.Insert(" " & sArg)
  Next
  TextArea1.Insert(gb.NewLine)
  TextArea1.Pos = Len(TextArea1.Text)
  Print Param.Count
End

Public Sub btnClose_Click()
  FMain.Close
End

Public Sub Form_Close()
  If $hScript.Running Then $hScript.Stop
  $hTmp = Null
  $aSubdirs.Clear()
  Wait 1
End

All monitored events are displayed when they are triggered by the script, as you can see in the monitoring log in Figure 6.8.3.2.
