The Vector class from the gb.gsl component implements a vector with real or complex coordinates or components. A vector can be used like a read/write array. The Vector class has two properties and five methods.

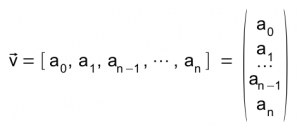

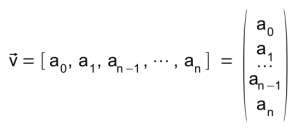

A vector can be represented as a row or column vector as follows

• A vector is a special n-tuple. A tuple is a finite list of n mathematical objects from different mathematical object classes.
• For the Vector class in Gambas, the mathematical object classes are either real or complex numbers. If complex numbers are used, this must be specified explicitly.
• The real or complex numbers ai in a row or column vector are called coordinates or components.
• The magnitude or length of a vector is called its (Euclidean) norm.

The Vector class has two properties:

Table 29.3.5.2.1 : Properties of the Vector class

The Vector class has these five methods:

Table 29.3.5.3.1 : Methods of the Vector class

Note:

• The copy of a vector is an independent vector object.
• If the 'Local' parameter has the value True, numbers are output in the local notation, while the default value False formats the string so that it can be evaluated by the Eval(..) function.

There are different ways to create vectors:

(A) Declaring a variable of data type Vector with direct value assignment.
(B) Declaring a variable of data type Vector and later assigning the coordinates in an array.
(C) Creating a copy of a vector.
(D) Converting a character string from a suitable (input) component into a vector as partial source text in a project.

Example A

Public voA As New Vector(3, False)

Example B

    Dim voD As Vector

    voD = New Vector(4, False)
    voD = [-3.4, 5, -6, 2]
'-- Print voD.ToString(True)

Example C

    Dim voA, voB As Vector

    voA = New Vector(3, False)
    voA = [5, -6, 2]
    voB = voA.Copy()
'-- Print voB.ToString(True)

The following operations are explained for vectors:

• addition, subtraction and scalar multiplication (scalar product).
• Direct comparison and checking for inequality exist as relations between 2 vectors.

Dim voA, voB, voC As Vector

  voA = [1, 1, 2]
  voB = [5, -4, 3]
  voC = [3, 6, 7]

  Print "Location vector OA: "; voA.ToString(True)
  Print "Location vector OB: "; voB.ToString(True)
  Print "Location vector: "; voC.ToString(True)

  Print "-----------------------------------------"

  Print "Vector sum: OA+OB = " & (voA + vob).ToString(True)
  Print "Vector difference: OA-OB = " & (voA - voB).ToString(True)
  Print "Scalar product: OA" & String.Chr(&H22C5) & "OB = z = "; voA.Dot(voB)
  Print "Comparison: OA not the same as a copy of OB? » "; voA <> voB.Copy()
  Print "Comparison: OC equals OB? » "; voc = voB

Read in the IDE console:

Ortsvektor OA: [1 1 2]
Ortsvektor OB: [5 -4 3]
Ortsvektor OC: [3 6 7]
-----------------------------------------
Vector sum: OA+OB = [6 -3 5]
Vector difference: OA-OB = [-4 5 -1]
Scalar product: OA⋅OB = z = 7
Comparison: OA not the same as a copy of OB? » True
Comparison: OC equals OB? » False

The following project implements the fourth variant (D) for creating a vector by converting a character string from a suitable (input) component.

• Specification: The three vectors are position vectors in a Cartesian coordinate system.
• The coordinates of the vectors are entered in the format: x|y|z in a text box - x, y and z are real numbers (→ Figure 29.3.5.6.1) and read from the formatted string.
• An input alphabet is specified and checked for the three text boxes so that incorrect entries are significantly reduced (→ CheckInput(..) and TBGroup_KeyPress()).
• A conversion function Convert2Vector(..) uses a regular expression, among other things, to check whether only valid entries were made in the three text boxes. If this is the case, the character string is split and converted into a vector.

Public Sub Form_Open()

  ...

' Set decimal separator after locale
  If Left$(Format$(0, ".0")) = "," Then
    txbInputA.Text = "1,0|1,0|2,0"
  Else
    txbInputA.Text = "1.0|1.0|2.0"
  Endif

End

Public Sub CheckInput(sAllowed As String) '-- Concept: Charles Guerin
 Select Case Key.Code
 Case Key.Left, Key.Right, Key.BackSpace, Key.Delete, Key.End, Key.Home, Key.Enter, Key.Return
      Return
 Default
      If Key.Text And If InStr(sAllowed, Key.Text) Then
         Return
      Endif
 End Select
 Stop Event
End

Public Sub TBGroup_KeyPress() '-- Applies to the *TextBox group* TBGroup consisting of 3 text boxes!

  If Left$(Format$(0, ".0")) = "," Then
    CheckInput("+-,|0123456789")
  Else
    CheckInput("+-.|0123456789")
  Endif

End

Public Function Convert2Vector(sInput As String) As Vector '-- Input string → Vector
  Dim sSubject, sPattern As String
  Dim vVector As Vector
  Dim aArray As String[]

  sSubject = sInput
  sSubject = Replace(sSubject, " ", "")
  sSubject = Replace$(sSubject, ",", ".")

  sPattern = "^([-+]?[0-9]*\\.?[0-9]+[|])([-+]?[0-9]*\\.?[0-9]+[|])([-+]?[0-9]*\\.?[0-9]+)$"

  If sSubject Match sPattern Then
     aArray = Split(sInput, "|")
     vVector = [Val(aArray[0]), Val(aArray[1]), Val(aArray[2])]
     Return vVector
  Else
     Return Error.Raise("Input error in the coordinates!")
  Endif

End

Almost all properties and methods of the Vector class are used in the project: the three location vectors define a triangle in space, some of whose properties are calculated.

Figure 29.3.5.6.1: Demonstration of working with vectors

You can use the IsVector(txbInputA.Text) function, for example, to check whether the character string read from a text box for point A can be interpreted as a point in a Cartesian coordinate system.

The above function is not used in the <uuuu>project. However, the same search pattern is used in a regular expression as in the Convert2Vector(..) function.

Private Function IsVector(sInput As String) As Boolean
  Dim sSubject, sPattern As String

  sSubject = sInput
  sSubject = Replace(sSubject, " ", "")
  sSubject = Replace$(sSubject, ",", ".")

  sPattern = "^([-+]?[0-9]*\\.?[0-9]+[|])([-+]?[0-9]*\\.?[0-9]+[|])([-+]?[0-9]*\\.?[0-9]+)$"

  If sSubject Not Match sPattern Then Return False

  Return True

End

The calculation of the cross product V1✘V2 of two vectors is realised by this function:

Public Function SetAxB(vV1 As Vector, vV2 As Vector) As Vector '-- Cross product: vV1✘vV2

  Dim fx, fy, fz As Float

  fx = vV1[1] * vV2[2] - vV2[1] * vV1[2]
  fy = vV1[0] * vV2[2] - vV2[0] * vV1[2]
  fz = vV1[0] * vV2[1] - vV2[0] * vV1[1]

  Return [fx, - fy, fz]

End

The complete, sufficiently commented source code can be found in the download area.
