GAMBAS BOOK 3.19.5

This chapter introduces you to a password generator PWG8 developed by the author and a password-protected programme that uses passwords from the password generator PWG8. The special feature is that you can encrypt plaintext passwords and decrypt pwg8-encrypted passwords.

The presented PWG8 password generator uses its own class with two methods EncodePW(sInput As String) and DecodePW(sInput As String). The strength of the entered password (plain text) is checked.

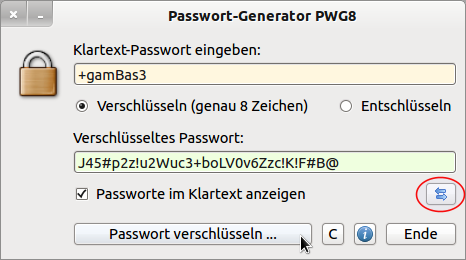

Figure 28.2.4.1.1: Password generator PWG8

Here is a selection of encrypted passwords for the plaintext password '+gamBas3' :

• Z03?c2r*o2Tiu4+bjUJ0i8Zwn?X!E@S+
• K35?x8k#z8Zhb7!noKD8z4Wpu?H+N@A#
• T99@a0v#t9Pub9+xiQN1z6Fej#T#G?C@

If the plaintext password is not a strong password, then the criteria for a strong password are displayed:

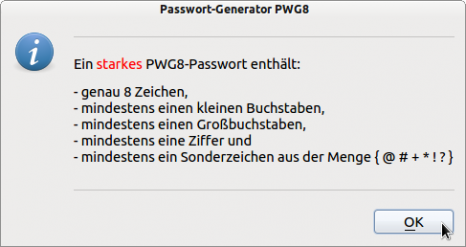

Figure 28.2.4.1.2: Hints for a strong password

Figure 28.2.4.1.3: Decryption of an encrypted password

You can also use the password generator to decrypt a strong pwg8-encrypted password and display the plaintext.

The source code for the custom class PWG8 is shown in full, while from the main program only the procedure is given which carries the main load in the password generator.

Contents of the file PWG8.class:

' Gambas class file

' This class PWG8 provides 2 public methods that are needed to encode
' and decoding a password. It also provides a globalValid
' variable of type Boolean is provided for checking purposes. The class can be
' controlled from a user interface via its public interface.

' *** Private constants ***
' That's 4 sets of characters for the encrypted password.
' The only important thing is that they are disjunctive sets.
' This means that a character may only occur once in the 4 subsets.

' Character set:
Private Const sCharactersetGB As String = "ABCDEFGHIJKLMNOPQRSTUVWXYZ" ' 26 Characters
Private Const sCharactersetKB As String = "abcdefghijklmnopqrstuvwxyz" ' 26 Characters
Private Const sCharactersetN As String = "0123456789"                  ' 10 Characters
Private Const sCharactersetS As String = "@#+*!?"                      ' 6  Characters

' *** Public variables ***
Public password As String

' *** Constructor ***
Public Sub _new()
  Password = ""
End ' _new()

' *** Public method ***
Public Function EncodePW(sInput As String) As String ' <--- Encrypt
  Dim iCount, iPosition, kCount As Integer
  Dim longInteger As Long
  Dim sCharacter, sBitSequence8, sBitSequence2, sPasswordE As String

  Randomize ' <--- Initialisation with timestamp

  sPasswordE = ""

  For iCount = 1 To Len(sInput)
    sCharacter = Mid(sInput, iCount, 1)
    longInteger = Asc(sCharacter)
    sBitSequence8 = Bin(longInteger, 8)
    iPosition = 1

    For kCount = 1 To 4
      sBitSequence2 = Mid(sBitSequence8, iPosition, 2)
      Select Case sBitSequence2
      Case "00"
        sPasswordE = sPasswordE & Mid(sCharactersetGB, Int(Rnd(1, Len(sCharactersetGB) + 1)), 1)
      Case "01"
        sPasswordE = sPasswordE & Mid(sCharactersetKB, Int(Rnd(1, Len(sCharactersetKB) + 1)), 1)
      Case "10"
        sPasswordE = sPasswordE & Mid(sCharactersetN, Int(Rnd(1, Len(sCharactersetN) + 1)), 1)
      Case "11"
        sPasswordE = sPasswordE & Mid(sCharactersetS, Int(Rnd(1, Len(sCharactersetS) + 1)), 1)
      End Select
      iPosition = iPosition + 2
      sBitSequence2 = ""
    Next ' kCount
  Next ' iCount

  Return sPasswordE

End ' EncodePW <--- Encrypt

Public Function DecodePW(sInput As String) As String ' <--- Decrypt
  Dim iCount As Integer
  Dim sCharacter, sBitSequence8, sPasswordD As String

  sPasswordD = ""
  sBitSequence8 = ""

  For iCount = 1 To Len(sInput)
      sCharacter = Mid(sInput, iCount, 1)

      If InStr(sCharatersetGB, sCharater) > 0 Then sBitSequence8 = sBitSequence8 & "00"
      If InStr(sCharatersetKB, sCharater) > 0 Then sBitSequence8 = sBitSequence8 & "01"
      If InStr(sCharatersetN, sCharater) > 0 Then sBitSequence8 = sBitSequence8 & "10"
      If InStr(sCharatersetS, sCharater) > 0 Then sBitSequence8 = sBitSequence8 & "11"

      If iCount Mod 4 = 0 Then
         sPasswordD = sPasswordD & Chr(BitSequenceToDecimal(sBitSequence8))
         sBitSequence8 = ""
      Endif ' iCount MOD 4 = 0 ?
  Next ' iCount

  Return sPasswordD

End ' DecodePW <--- Decrypt

Property Read Valid As Integer
' A check is made to see if a strong password has been entered.

' *** Private method ***
Private Function Valid_Read() As Integer
  Dim iCount, iKB, IGB, iNUM, iSZ As Integer
  Dim sInput, sCharater, sCharaterset As String

  If Not Me.Password Then
     Return -1
  Else
     sInput = Me.Password
  Endif ' Not Me.Password ?

  For iCount = 1 To Len(sInput)
      sCharater = Mid(sInput, iCount, 1)
      sCharaterset = sCharatersetGB & sCharatersetKB & sCharatersetN & sCharatersetS
      If InStr(sCharaterset, sCharater) = 0 Then
         Return -2
      Endif '  Password with at least 1 illegal character ?
  Next ' iCount

  For iCount = 1 To Len(sInput)
      sCharater = Mid(sInput, iCount, 1)
      If InStr(sCharatersetKB, sCharater) <> 0 Then
         iKB = 1
      Endif ' Password with at least 1 lower case letter ?
  Next ' iCount

  For iCount = 1 To Len(sInput)
      sCharater = Mid(sInput, iCount, 1)
      If InStr(sCharatersetGB, sCharater) <> 0 Then
         iGB = 1
      Endif ' Password with at least 1 capital letter ?
  Next ' iCount

  For iCount = 1 To Len(sInput)
      sCharater = Mid(sInput, iCount, 1)
      If InStr(sCharactersetN, sCharacter) <> 0 Then
         iNUM = 1
      Endif ' Password with at least 1 digit ?
  Next ' iCount

  For iCount = 1 To Len(sInput)
      sCharacter = Mid(sInput, iCount, 1)
      If InStr(sCharactersetS, sCharacter) <> 0 Then
         iSZ = 1
      Endif ' Password with at least 1 special character ?
  Next ' iCount

  If iKB + iGB + iNUM + iSZ < 4 Then Return -3
  If Len(Me.Password) < 8 Then Return -4
  Return 0

End ' Valid_Read()

Private Function BitSequenceToDecimal(sInput As String) As Integer
  Dim iCount, iDecimal As Integer
  Dim sLocation As String

  For iCount = 0 To Len(sInput) - 1
      sLocation = Mid(sInput, Len(sInput) - iCount, 1)
      iDecimal = iDecimal + CInt(sLocation) * 2 ^ iCount
  Next ' iCount

  Return iDecimal

End ' BitSequenceToDecimal

This is the content of the file FMain.class:

Public Sub btnEncodeDecode_Click()

  MyPWG8.Password = txtPasswordInput.Text

  Select Case MyPWG8.Valid
    Case -1
      Message.Error("The input field is empty!")
      txtPasswordInput.SetFocus
      Return
    Case -2
      Message.Error("At least one character in the password is not allowed!")
      txtPasswordInput.SetFocus
      Return
    Case -3
      Message.Error("The password is NOT a strong password!")
      txtPasswordInput.SetFocus
      Return
    Case -4
      Message.Error("The password is too short!")
      txtPasswordInput.SetFocus
      Return
    Case Else ' 0 → Without error
      If chkPasswordDisplay.Value = True Then
         txtPasswordOutput.Password = False
      Else
         txtPasswordOutput.Password = True
      Endif ' chkPasswordDisplay.Value = True ?

      If optEncode.Value = True Then
         txtPasswordOutput.Text = MyPWG8.EncodePW(MyPWG8.Password)
      Else
         txtPasswordOutput.Text = MyPWG8.DecodePW(MyPWG8.Password)
      Endif ' optEncode.Value = True ?
  End Select ' MyPWG8.Valid

End ' btnDecodeEncode_Click()

Comment:

• Due to the different values for MyPWG8.Valid, errors in password entry can be dealt with in a differentiated manner.

The complete project and an application of the PWG8 password generator can be found in the download area.
